State transition testing is a vital technique in software testing that focuses on ensuring a system behaves as expected when it shifts between different states. This approach is particularly useful for applications with state-dependent behaviors, such as embedded systems, interactive applications, and workflows with complex conditions. By verifying state transitions, testers can ensure that the system responds appropriately under varying conditions.
What is State Transition Testing?
State Transition Testing Overview
State transition testing is used to verify that a system behaves correctly as it transitions from one state to another based on specific events. Systems that rely on multiple states need to transition between these states when certain events occur, and testing ensures that these transitions happen as intended.
Purpose of State Transition Testing
The goal of this testing is to confirm that the system moves between states correctly and performs the right actions during transitions. This ensures no unexpected behaviors or errors arise due to invalid state transitions, which could negatively impact the system’s functionality.
Tools Used in State Transition Testing
Common tools include state transition diagrams and state transition tables. These tools help visualize and structure the system’s states and transitions, making it easier for testers to track each state and event, ensuring all possible transitions are validated.
Continue Reading: automation testing interview questions
Key Components of State Transition Testing
State
A state represents a condition or status of the system at a specific moment. For instance, in an e-commerce platform, states could include “Browsing Products,” “In Shopping Cart,” or “Order Confirmed.” Each state governs what actions are available to the user.
Event
An event is an input or action that triggers a transition from one state to another. Events are critical because they initiate the change in system state. For example, a user clicking the “Checkout” button could transition the system from “In Shopping Cart” to “Order Processed.”
Transition
A transition occurs when the system moves from one state to another due to an event. This is the key focus of state transition testing, ensuring that the system responds correctly to specific inputs and moves to the next state as expected.
Action
An action refers to the system’s behavior or output during a state transition. This could be displaying a message, updating a database, or initiating an external process. Testing these actions ensures that the system behaves as intended during the state transitions.
State Transition Diagram in Software Engineering
What is a State Transition Diagram?
A state transition diagram in software engineering visually represents the system’s states and the transitions between them. Nodes represent states, and edges represent transitions triggered by events. These diagrams are crucial for visualizing system behavior and verifying that all possible transitions are accounted for.
Purpose of the Diagram
The diagram helps testers understand the system’s flow and check whether every state and transition is properly covered. It serves as a blueprint for testing, ensuring that each path between states has been considered.
Example
In a login system, a state transition diagram might include states such as “Not Logged In,” “Logging In,” and “Logged In.” The transitions could be triggered by events like entering login credentials and submitting the form.
State Transition Table in Software Testing
What is a State Transition Table?
A state transition table in software testing is a structured table that lists all states, events, transitions, and actions. It provides a clear and organized way to track and verify each state transition and its expected outcome, ensuring comprehensive test coverage.
How the Table Works
The table includes columns for the current state, the event that triggers the transition, the next state, and the action that results from the transition. It allows testers to systematically verify every state change and ensure that all transitions are valid.
Example
For an ATM system, a state transition table might list states such as “Idle,” “Card Inserted,” “Transaction Complete,” and events like “Insert Card,” “Enter PIN,” and “Withdraw Cash.” This ensures each state change and associated action is verified.

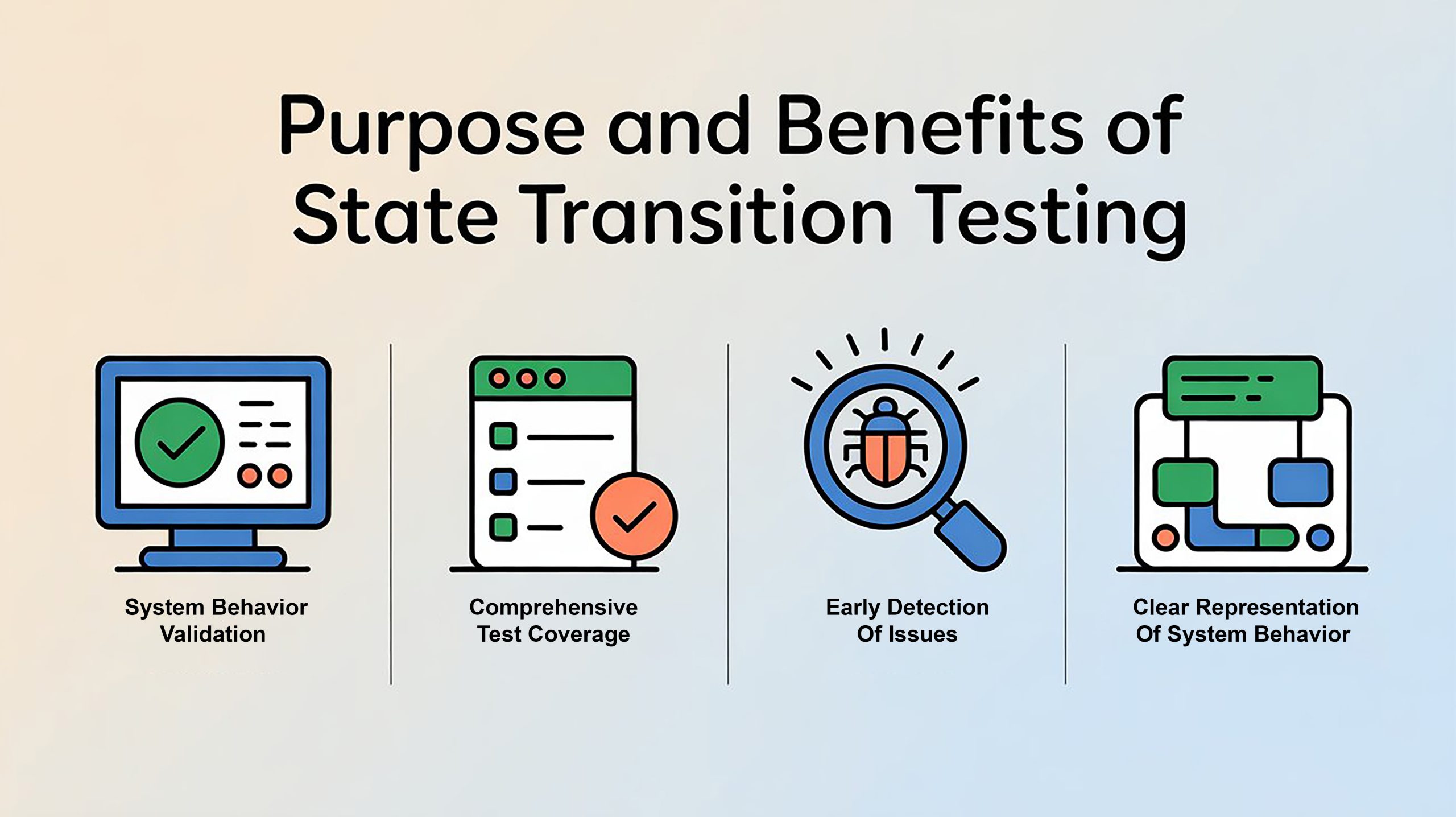

Purpose and Benefits of State Transition Testing
System Behavior Validation
The main goal of state transition testing is to confirm that the system behaves correctly when transitioning between states. Testers check if the system reacts appropriately to events and that transitions occur as expected.
Comprehensive Test Coverage
By examining all possible states, events, and transitions, state transition table testing ensures that no scenario is missed. This is especially valuable for systems with multiple workflows, like banking systems or complex applications, where many state transitions need to be tested.
Early Detection of Issues
State transition testing helps detect defects early by testing the behavior of state transitions before the system is fully deployed. Identifying issues during development prevents costly fixes later on and ensures the software is reliable when released.
Clear Representation of System Behavior
Tools like state transition diagrams and tables provide a clear and visual representation of how the system should behave. This helps both testers and developers understand the flow of states and events, reducing ambiguity and improving communication.
Conclusion
State transition testing is essential for verifying the correctness of systems with state-dependent behavior. By using tools like state transition diagrams and state transition tables, testers can systematically verify that all transitions occur as expected and that the system behaves properly in different states. This testing methodology ensures robust software, improves reliability, and helps identify defects early in the development cycle. Whether for embedded systems, interactive applications, or complex workflows, state transition testing plays a crucial role in delivering high-quality, error-free software. If you’re interested in mastering this technique, consider enrolling in a Software testing course online to gain in-depth knowledge and practical skills.
FAQs
1. What is State Transition Testing?
State Transition Testing ensures that a system behaves as expected when transitioning between different states based on events, preventing errors from invalid transitions.
2. Why is State Transition Testing important?
It helps in detecting defects early by verifying that a system moves correctly between states and reacts appropriately to events, ensuring high-quality software.
3. What tools are used in State Transition Testing?
Common tools include State Transition Diagrams and State Transition Tables, which visually represent and structure the system’s states, transitions, and actions.
4. How do State Transition Diagrams work?
They visually depict states and transitions using nodes and edges, helping testers track system behavior and verify that all possible state transitions are covered.
5. What is the difference between State Transition Diagrams and Tables?
While diagrams provide a visual flow, tables list states, events, transitions, and actions in a structured format, ensuring comprehensive verification of system behavior.
6. Can State Transition Testing be used in all software systems?
Yes, it is particularly useful in systems with multiple states, like e-commerce, ATM systems, and embedded systems, where many transitions need to be tested.
